Monitor CCTV tester+LAN test

Monitor CCTV tester+LAN test
 Cliquer sur la loupe pour voir le zoom
Monitor CCTV tester+LAN test
Référence : VASLT2840
4.3 inch monitors offers a good size display of the camera feed
12V 0.5A power output that can be used as a temporary power supply for cameras
Adjustable screen brightness for use in sunlit conditions
Network cable testing capabilities for fault finding

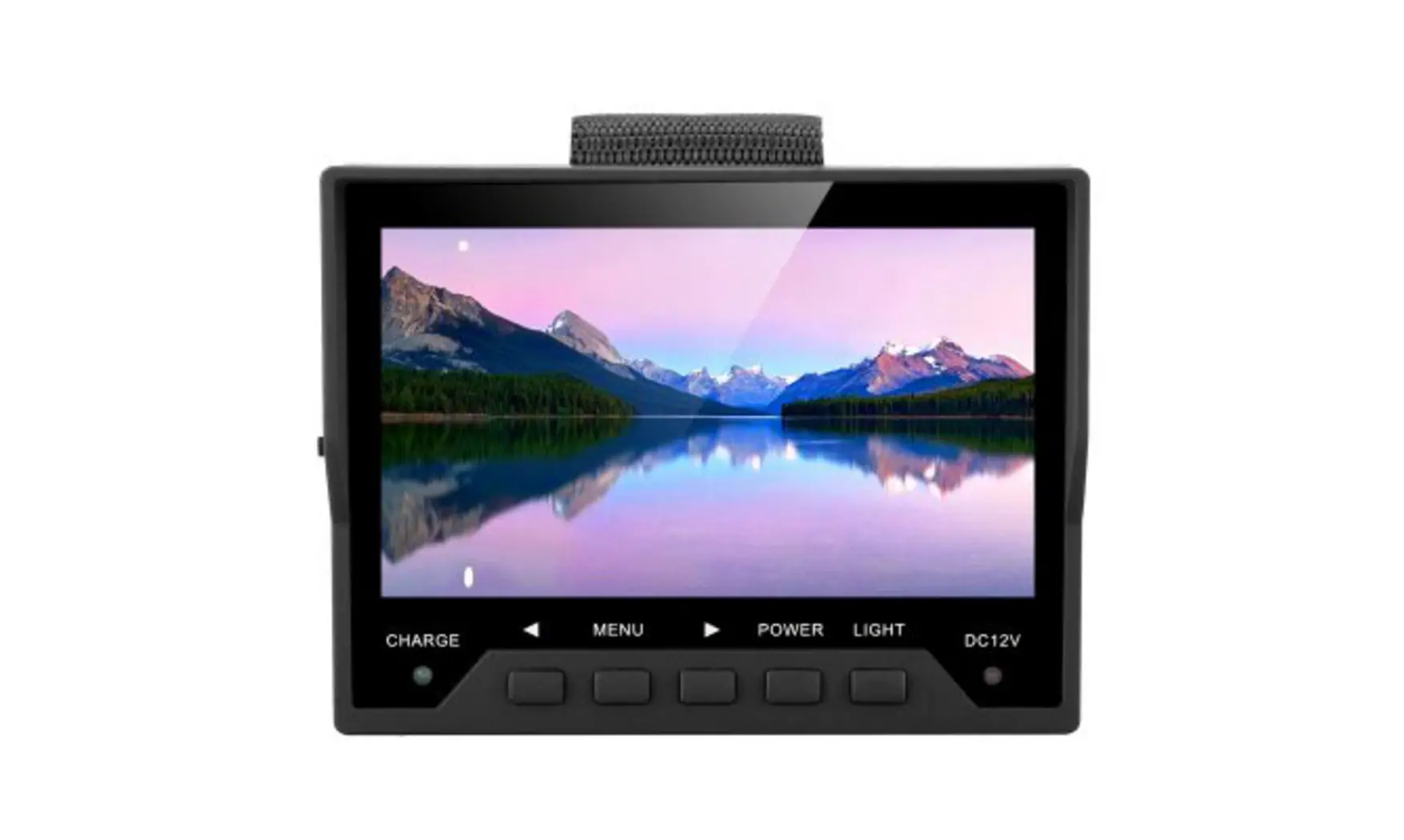

4.3 Inch CCTV Testing Kit

This 4.3 inch portable LCD monitor is the perfect way to test and setup your CCTV Surveillance system. With a 12V output you can use the testing unit to temporarily power a camera making it easy to position and install the camera in the correct spot before you need to install any cabling. This makes installations much quicker and saves time running back and forth to check the camera feeds, it also ensures you get the cameras exactly where you want them to maximize the security coverage of your property.

With a resolution of 480x272 you can see a true view of the camera feed and both PAL and NTSC formats are supported on this one device. The brightness, contrast and color settings on the monitor can be easily adjusted, which make it easier to use in bright sunlit conditions.

Coming with a handy wrist strap makes this CCTV testing monitor easy to use especially if you’re up a ladder as it won’t needlessly occupy your hands and lets you clearly see the camera feed. Just strap it to your wrist, belt or even the ladder itself so it’s in a convenient location for where you’re working and will avoid being dropped or becoming damaged. With the ability to let you test CAT 5 RJ45 cables this system makes fault finding quick and simple so you can test and repair security systems with ease.

This product is in stock now, we offer a 12 months warranty on all our products. Brought to you by the leader in electronic devices as well as wholesale CCTV security cameras and testing kits, Chinavasion..
Manufacturer Specifications

General
Screen: 4.3 Inch TFT LCD Display Screen
Resolution: 480x272
Video Input Standard: PAL/NTSC
Video Input: 1.0VP-P
Audio Input: 0.7Vp-p
Support Test Network Cable Function
With LED Lamp
Brightness, Contrast, Color
Low Power Warming
Shell Materials: ABS
Battery: 18650 Lithium Battery DC3.7V (2600mA)
Usage Time: About 2 Hours
Power: AC100V to 240V, 5V/2A
Power Consumption: Up to 1W
Operating Temperature: 5 to 50 Degree Celsius

Ports
LAN
USB
Mini USB

Media Formats
Languages: English, German, French, Spanish, Portuguese, Italian, Japanese, Chinese, Russian

Dimensions
Main Product Dimensions: 84 x 110 x 39 mm (L x W x D)
Main Product Weight: 193g


Product Notes
Battery: Removable

Package Contents
Monitor
USB Cable
Power Adapter
Wristbands
BNC Adapter
LAN Adapter
AV Cable
User Manual
Produits disponibles : 1
2024-12-31 72.0072.00 EUR
